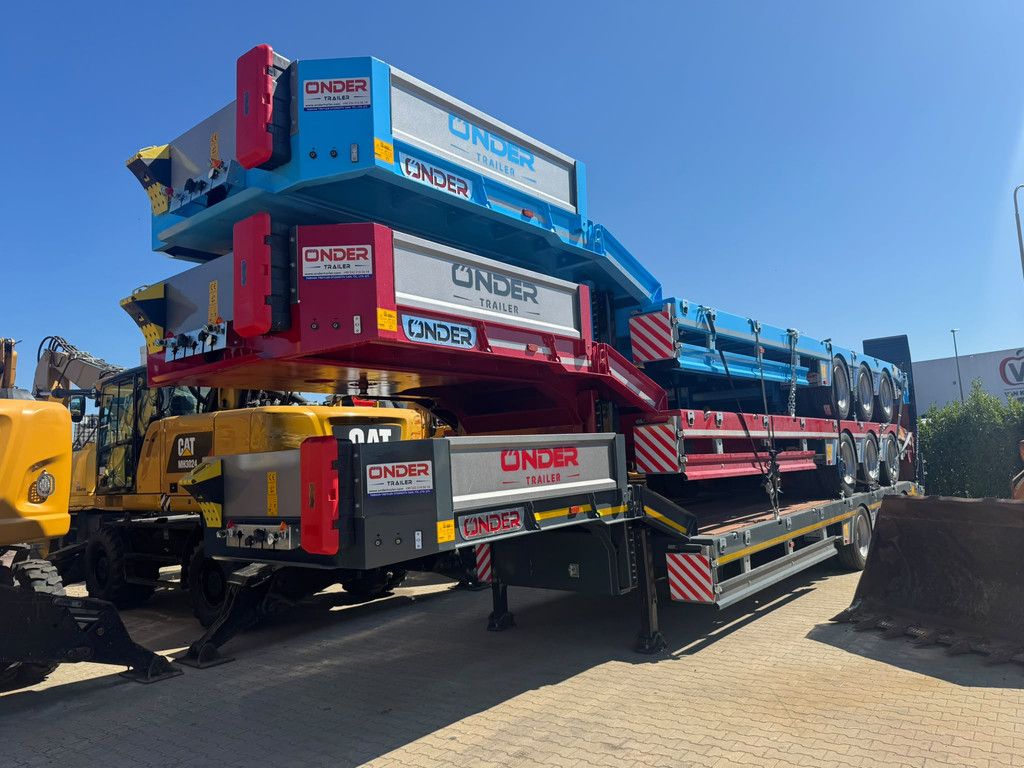

Onder AGM3

Omschrijving

New Trailer 56 Ton

Year of manufacture: 2026
Material: S355JR steel

Weights

Permitted gross weight: 56,000 kg
Axle load per axle (3 axles): 3 × 12,000 kg = 36,000 kg
Permitted king pin load: 36,000 kg
Technically permissible max. towed mass (T): 20,000 kg
Gross weight at export (empty/transport): 33,000 kg (per A.TR document)

Dimensions (from technical drawing)

Overall length: 13,600 mm
Loading bed/deck length: 9,300 mm
Width (outer): 3,000 mm
Loading bed width (inner, between frames): 2,540 mm
Ramp/gooseneck height: 2,950 mm
Ground clearance/lowest deck point: 110 mm
Axle spread reference: 7,500 mm
Tire size: 275/70 R22.5
