Cummins C38D5QS Declaration of Conformity, Diesel, 38kVA,

Omschrijving

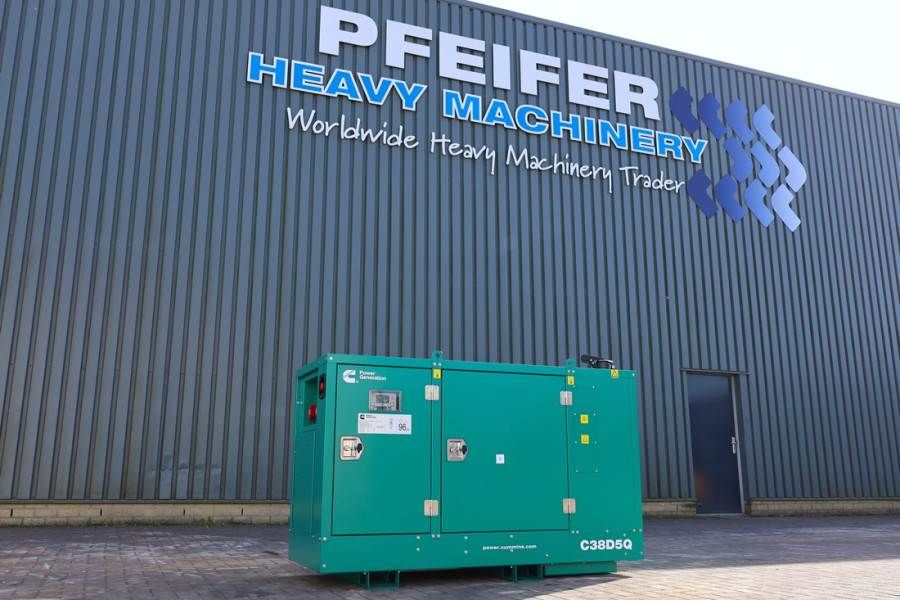

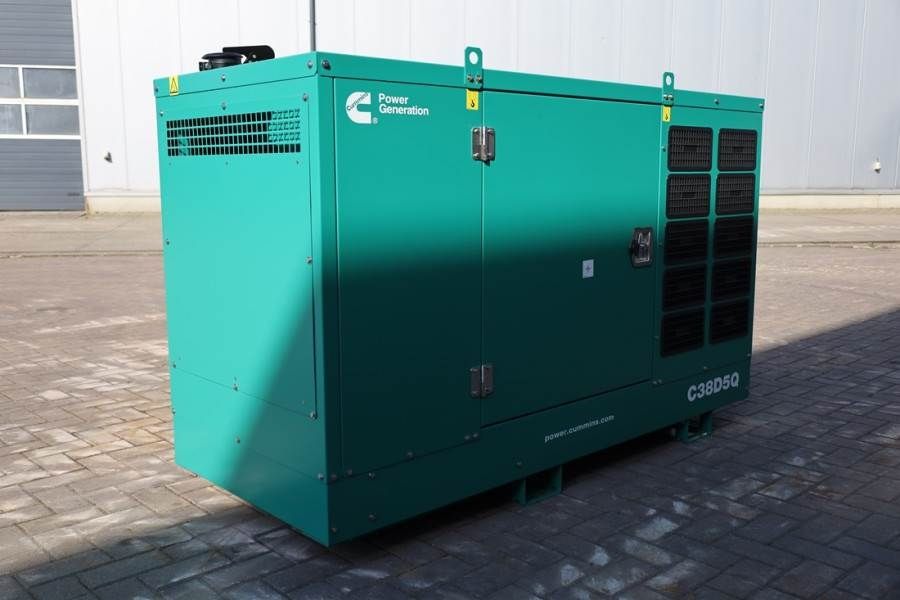

The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales.

For more information, feel free to contact us without any obligation.

Manufacturer: Cummins
Typ: C38D5EQ
Manuf. Year: 2025
Serial nr: K24I158166
Fuel: Diesel

General Data
Model: C38D5Q

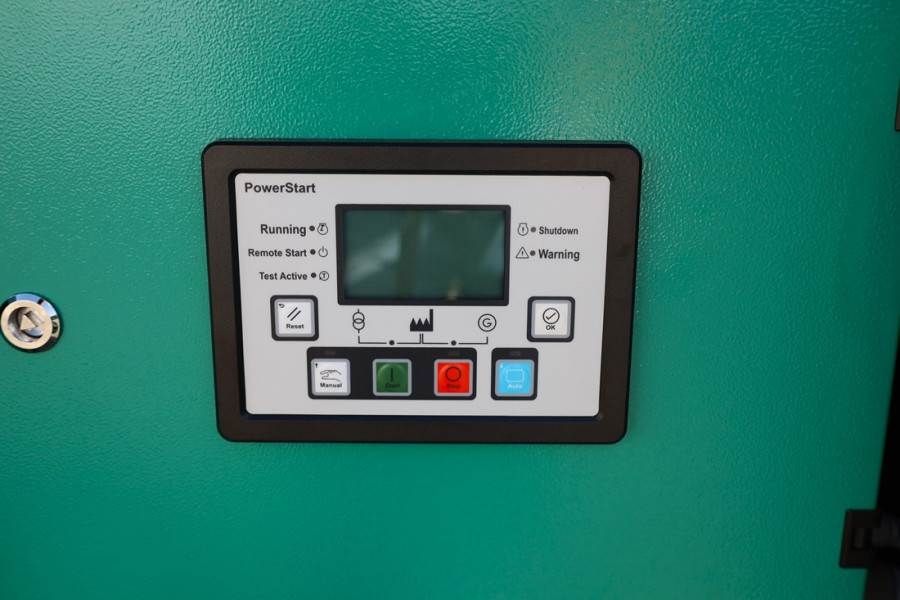

Controller: PS0600
Voltage: 400/230V (3-phase)
Frequency: 50 Hz
Standby Power: 38 kVA / 30.4 kW
Prime Power: 35 kVA / 28 kW
Alternator Model: Stamford S1L2-J1

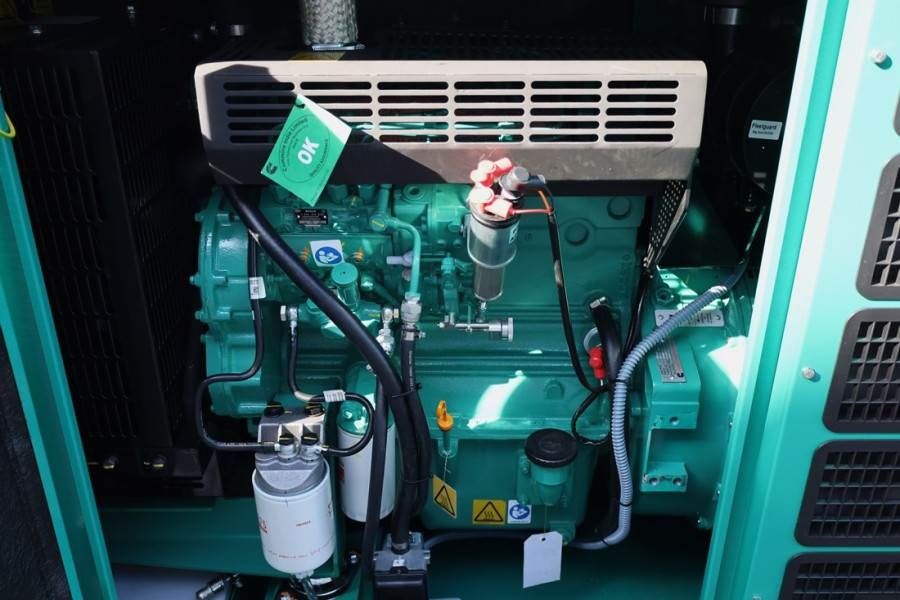

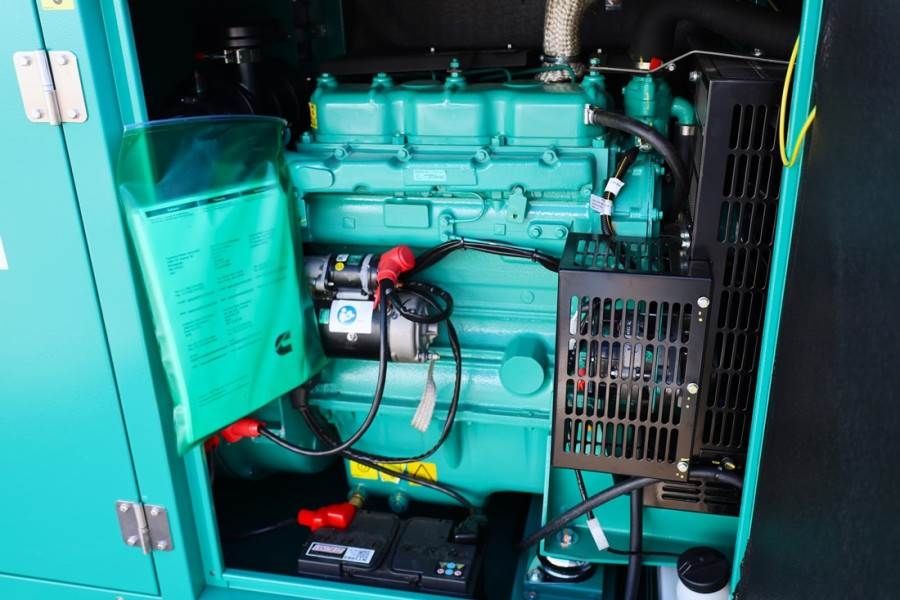

Engine Specifications

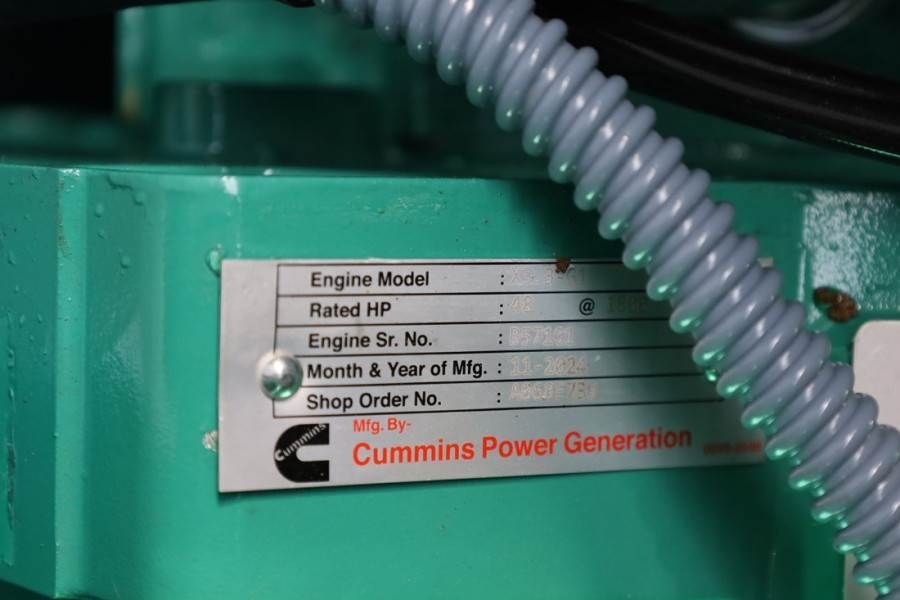

Engine Model: Cummins X3.3-G1
Type: 4-cycle, in-line, 4-cylinder diesel, naturally aspirated
Displacement: 3.3 L
Rated Speed: 1500 RPM
Lube Oil Capacity: 6.8L (standard) / 7.5L (total)
Fuel System: Direct injection with a spin-on fuel filter & water separator
Cooling System: 50°C ambient radiator with coolant recovery system
Starting Voltage: 12VDC
Battery Charging Alternator: 36A

Fuel Consumption
1/4 Load: 3.2 L/h (Standby) / 3.1 L/h (Prime)
1/2 Load: 4.8 L/h (Standby) / 4.5 L/h (Prime)
3/4 Load: 7.0 L/h (Standby) / 6.4 L/h (Prime)
Full Load: 10.8 L/h (Standby) / 9.0 L/h (Prime)

Alternator Specifications
Exciter Type: Self-excited
Insulation System: Class H
Voltage Regulation: ±2.5%
Frequency Regulation: Droop
Phase Rotation: A (U), B (V), C (W)
Cooling: Direct drive centrifugal blower fan

Battery System
Battery Type: Lead acid, flooded/SLI technology
Battery Voltage: 12V
Battery Capacity: 75 Ah
Battery Charger: 12/24VDC, 4A
Battery Disconnector: Standard

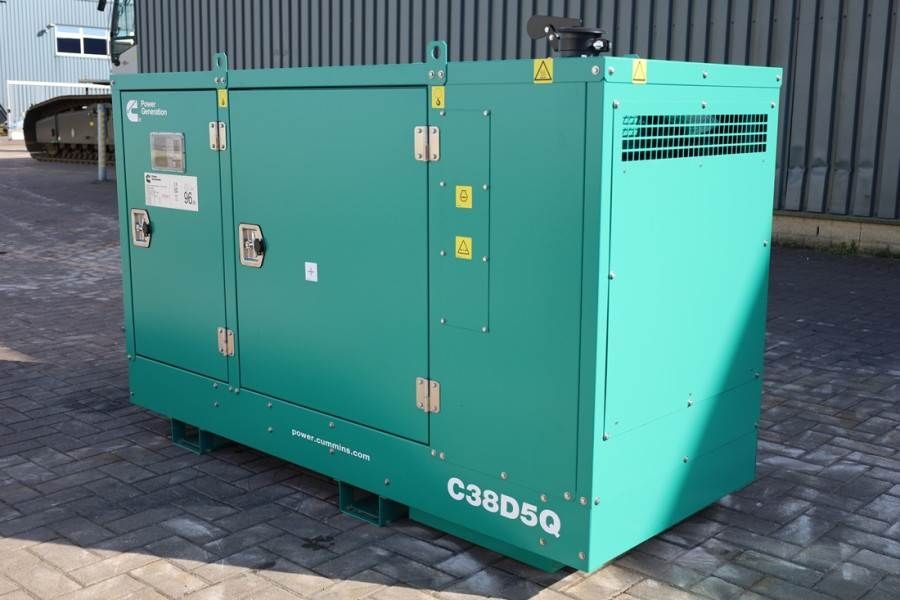

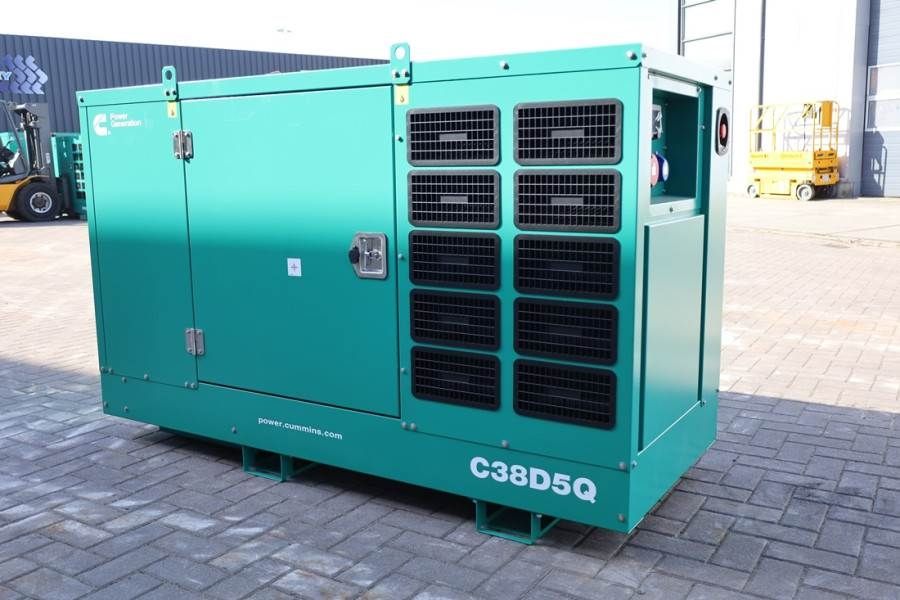

Dimensions & Weight
Enclosed Version: 1960mm (L) x 820mm (W) x 1285mm (H), Weight: 800kg (dry) / 842kg (wet)

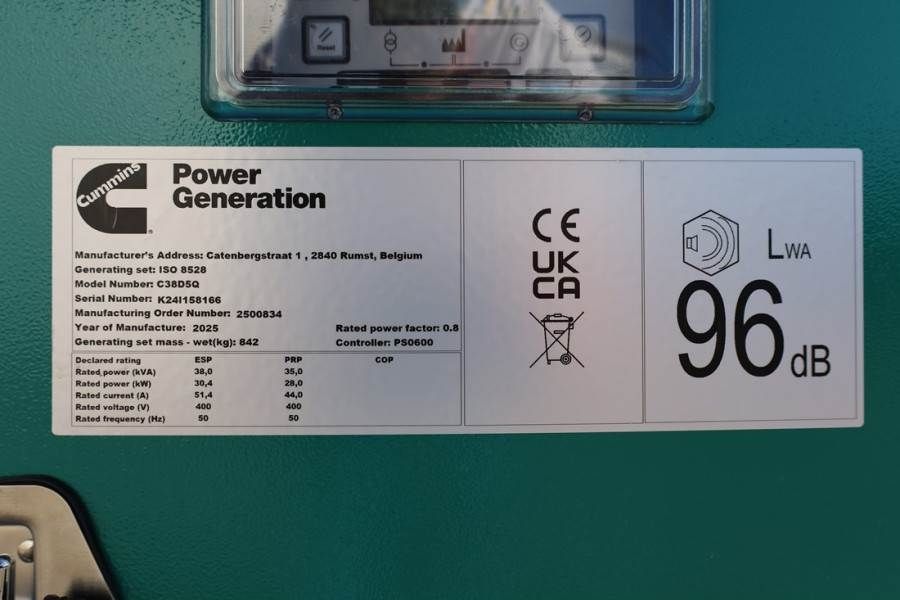

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
