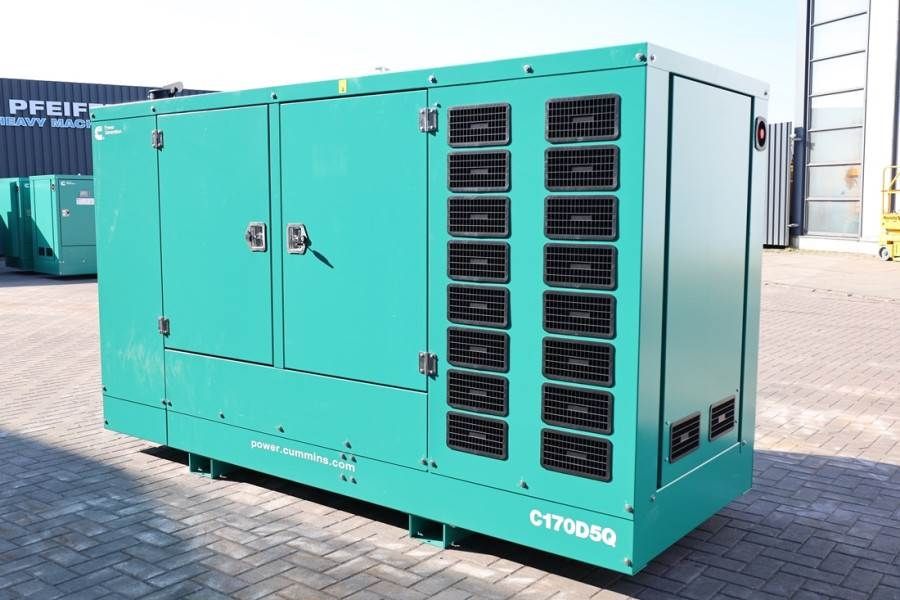

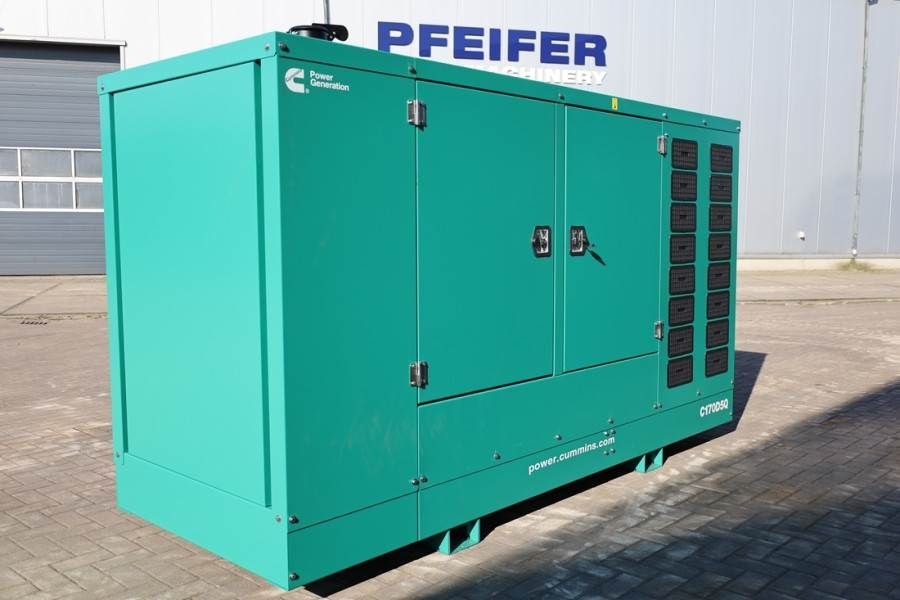

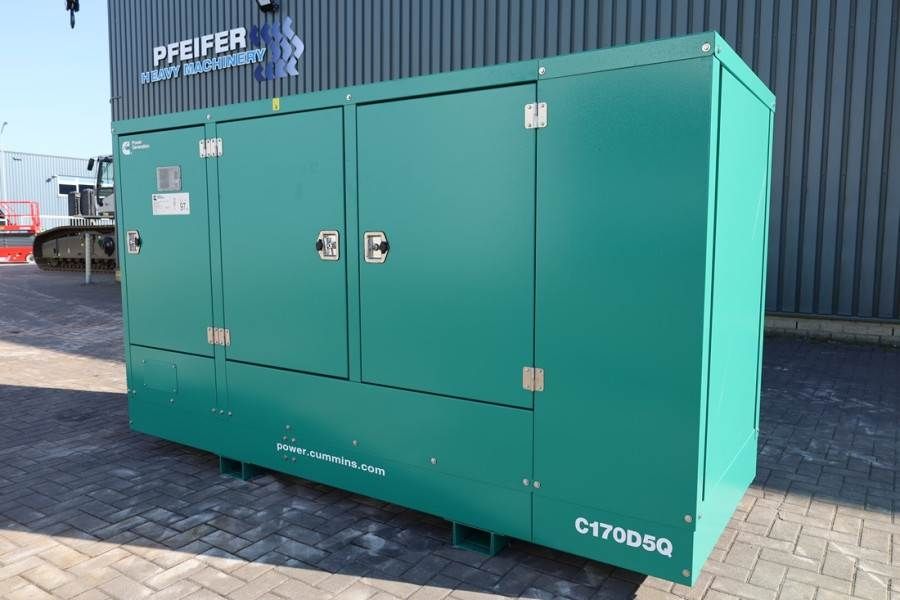

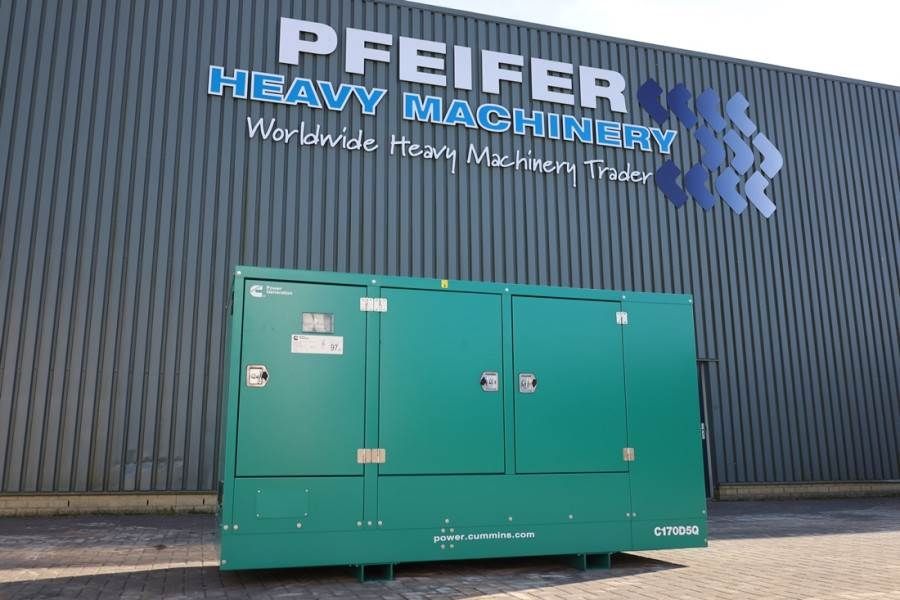

Cummins C170D5Q Declaration of Conformity, Diesel, 170kVA,

Omschrijving

The Cummins C22D5Q, C38D5Q, C55D5EQ, C66D5EQ, C110D5Q, C170D5Q, and C220D5EQ are the generator models we offer for both sale and rental, available for immediate delivery from stock at Pfeifer Rentals & Sales.

For more information, feel free to contact us without any obligation.

Manufacturer: Cummins
Typ: C170D5Q
Manuf. Year: 2025
Serial nr: J24I439724
Fuel: Diesel

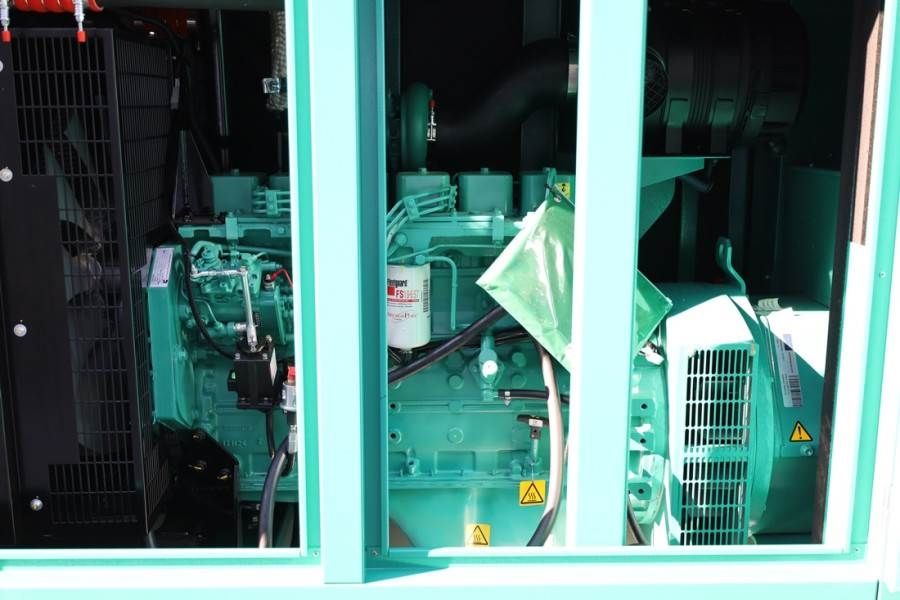

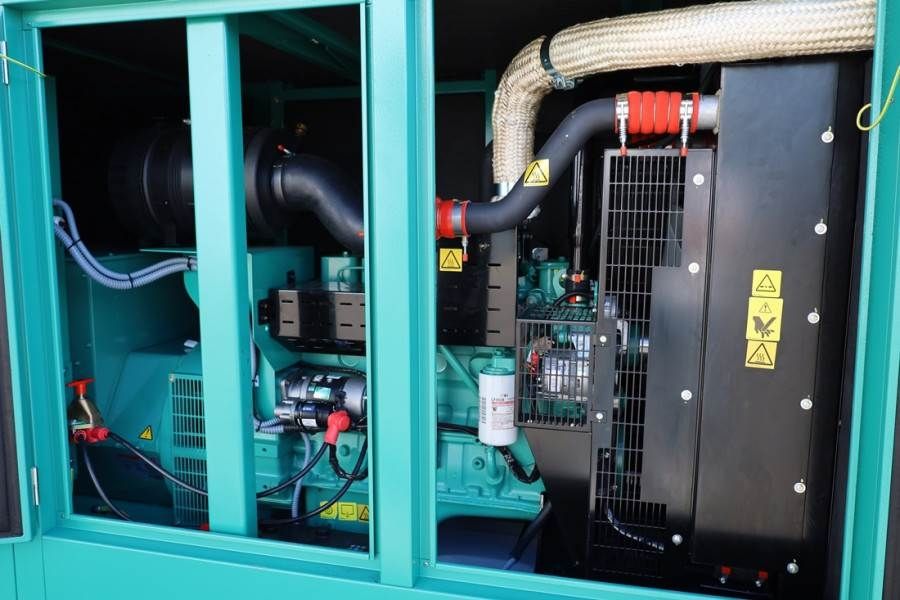

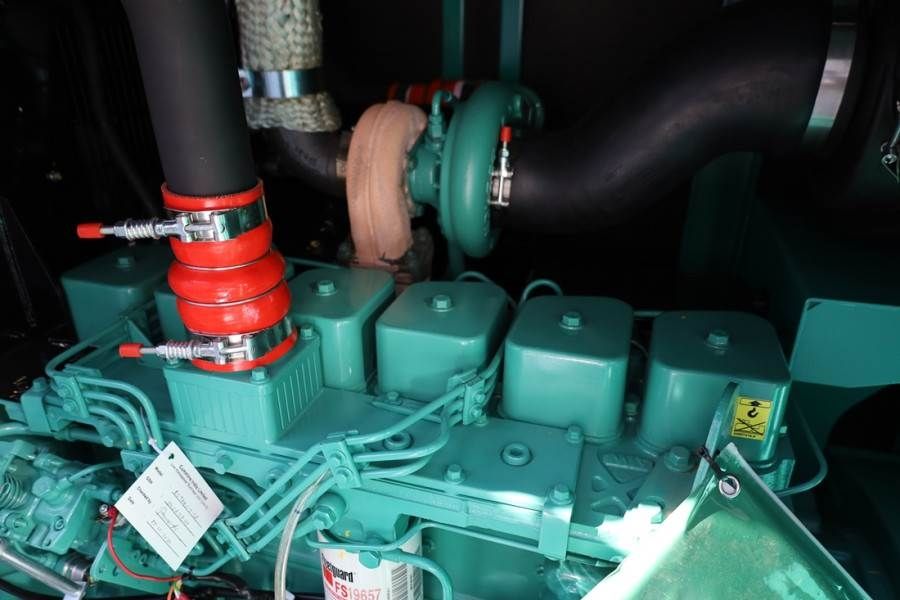

Engine

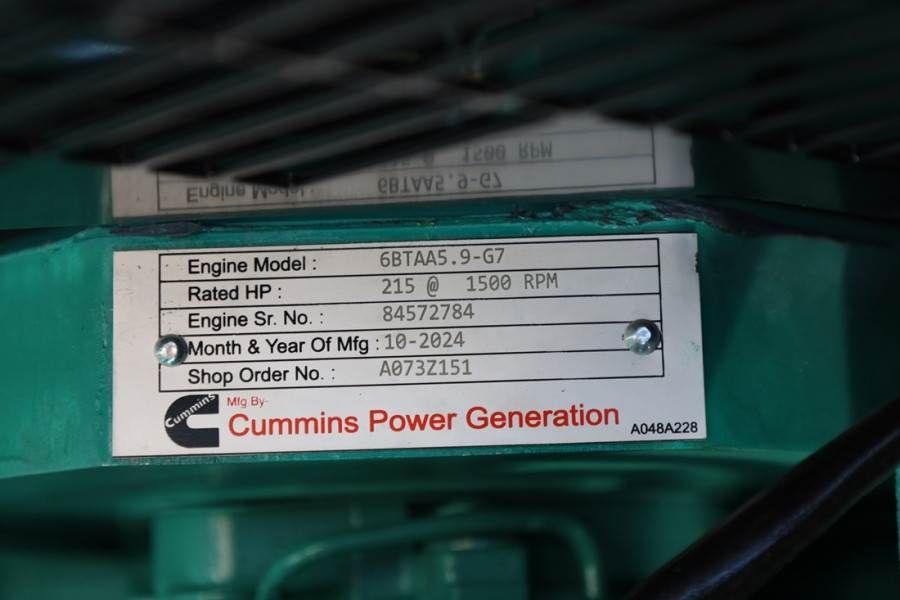

Model: Cummins 6BTAA5.9-G7

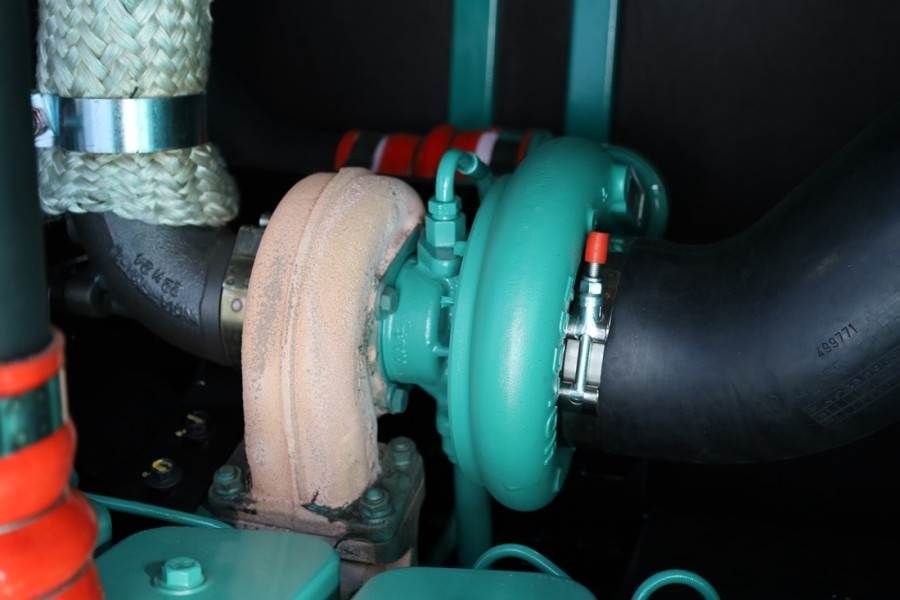

Design: 6-cycle, in-line, turbocharged, charged air-cooled
Displacement: 5.9 liters
Speed: 1500 RPM
Bore & Stroke: 102 mm × 120 mm
Cylinder Block: Cast iron, 6 cylinders
Fuel System: Bosch mechanical injection
Cooling System: 50°C ambient radiator with a coolant recovery system

Performance & Power Ratings
Emergency Standby Power (ESP): 170 kVA / 136 kW
Prime Power (PRP): 155 kVA / 124 kW
Voltage: 400/230 V
Frequency: 50 Hz
Voltage Regulation: ±1%
Frequency Regulation: Isochronous

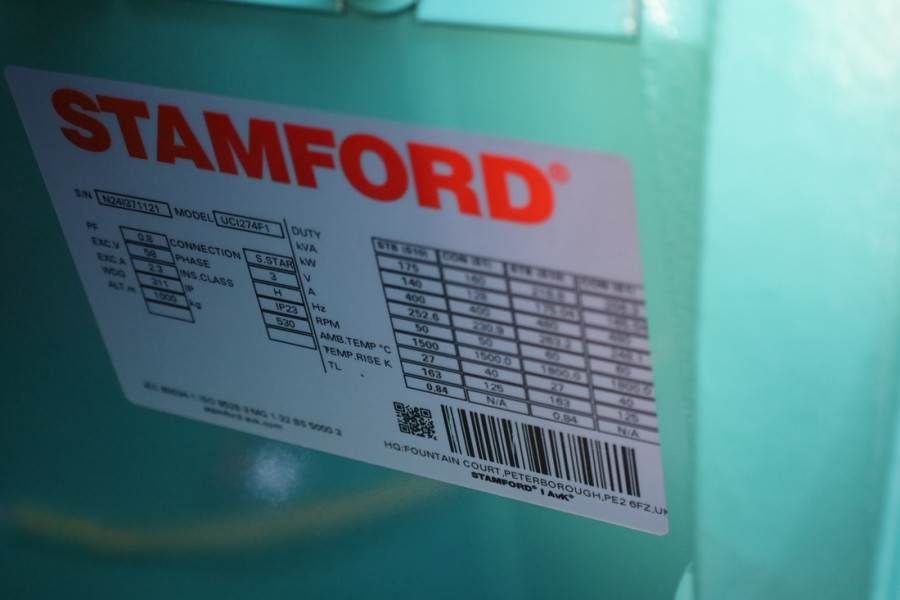

Alternator
Manufacturer: Stamford
Model: UC274F
Design: Brushless, single bearing
Insulation Class: H
Excitation: Self-excited (Permanent Magnet Alternator available as an option)
Cooling: Direct drive centrifugal fan

Fuel Consumption
1/4 Load: 11 L/h
1/2 Load: 21 L/h
3/4 Load: 31.5 L/h
Full Load: 41 L/h
Fuel Tank Capacity: 400 liters
Autonomy at 75% PRP: 13 hours

Control System

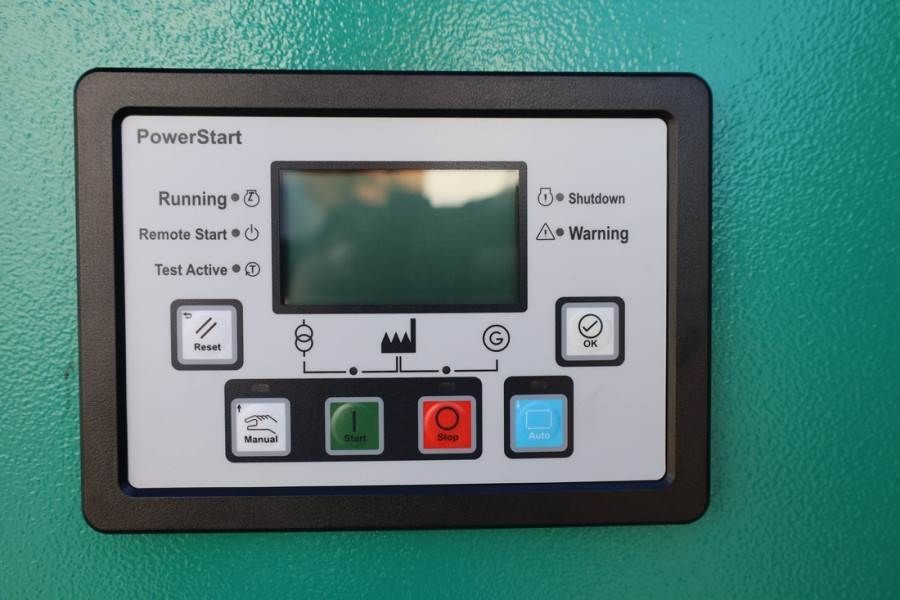

Controller: PowerStart PS0600 (microprocessor-based)

Functions:
Auto/manual start/stop
Fault indication
Digital metering
Configurable for 50 Hz/60 Hz operation
Remote start capability
Low fuel level warning
Acoustic Performance (Enclosed Version)
Guaranteed Sound Power Level: 97 dB(A)

Battery System
Type: Lead-acid flooded/SLI technology
Voltage: 12 VDC
Capacity: 140 Ah
Charging Alternator: 55 A

Cooling & Exhaust
Coolant Capacity (with radiator): 22.1 liters
Cooling Airflow: 3.77 m³/sec
Exhaust Gas Flow: 32.46 m³/min
Exhaust Gas Temperature: 533°C

Dimensions & Weight
LxWxH: 3.100mm x 1.180mm x 1.950mm
Wet Weight (kg) 2.020

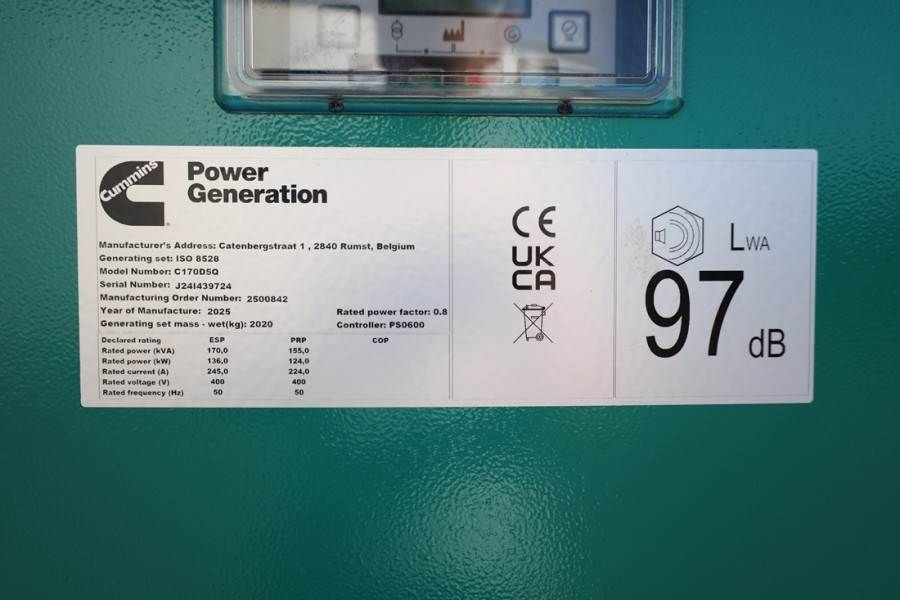

CE (Declaration of Conformity)
