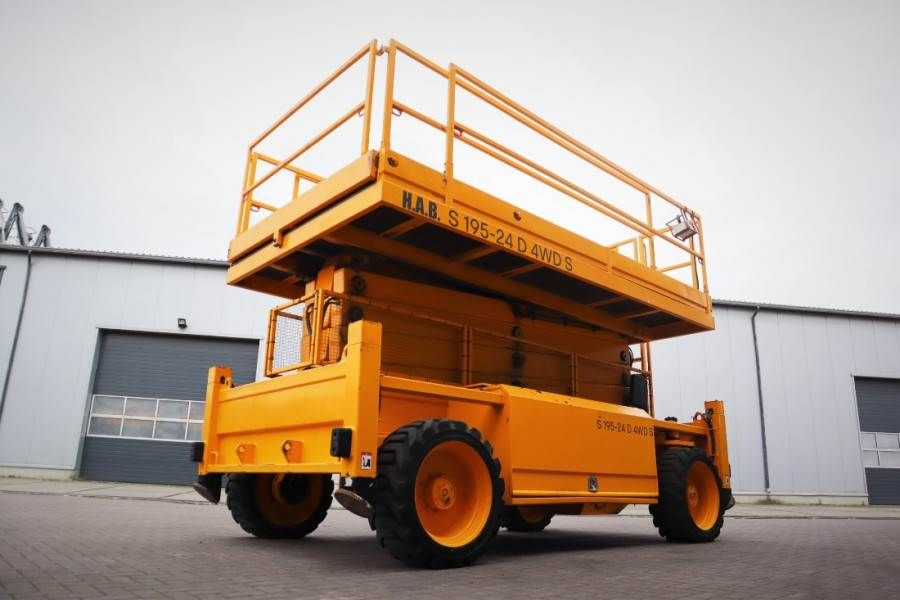

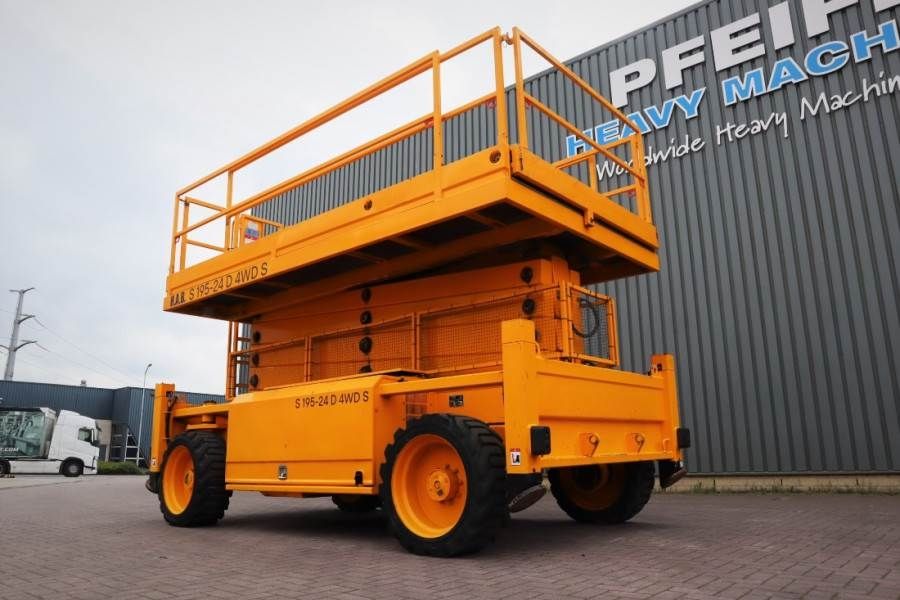

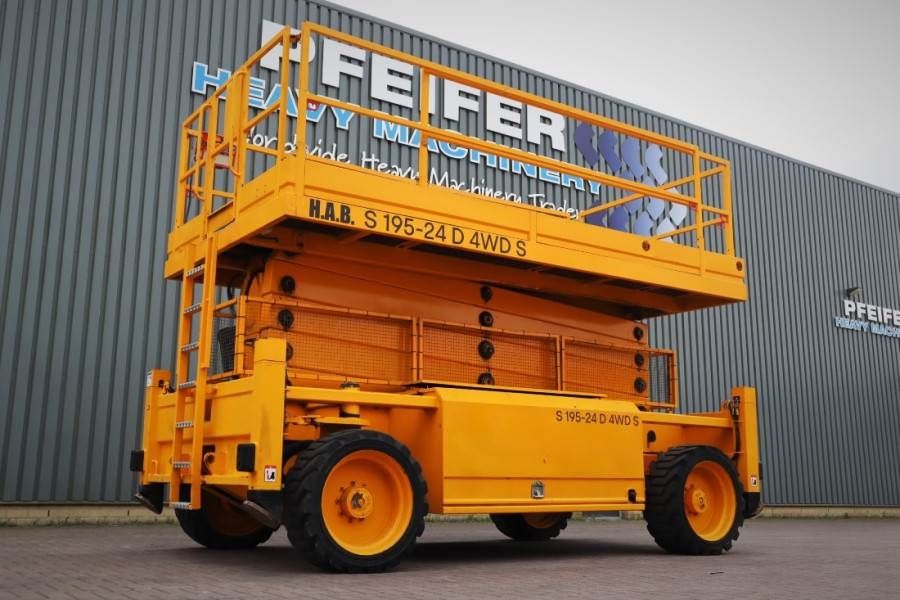

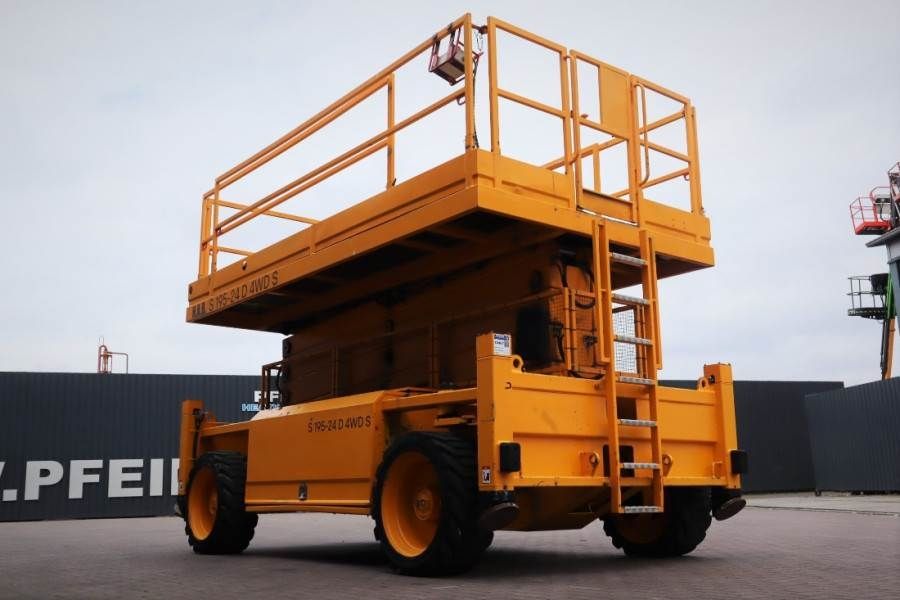

HAB S195-24 D4WDS Diesel, 4x4 Drive, 19.5m Working Hei

Omschrijving

Manufacturer: H.A.B
Typ: S195-24D 4WDS
Building year: 2011
Working Hours: 1.838 h
Serial nr: 221100566

Working height: 19.50 m
Capacity: 750 kg
Platform size: 4.50 m x 2.36 m
Hydr. Platform extension: 2.70 m

Wheelbase: 3.20 m
Ground clearance: 240 - 350 mm

ENGINE

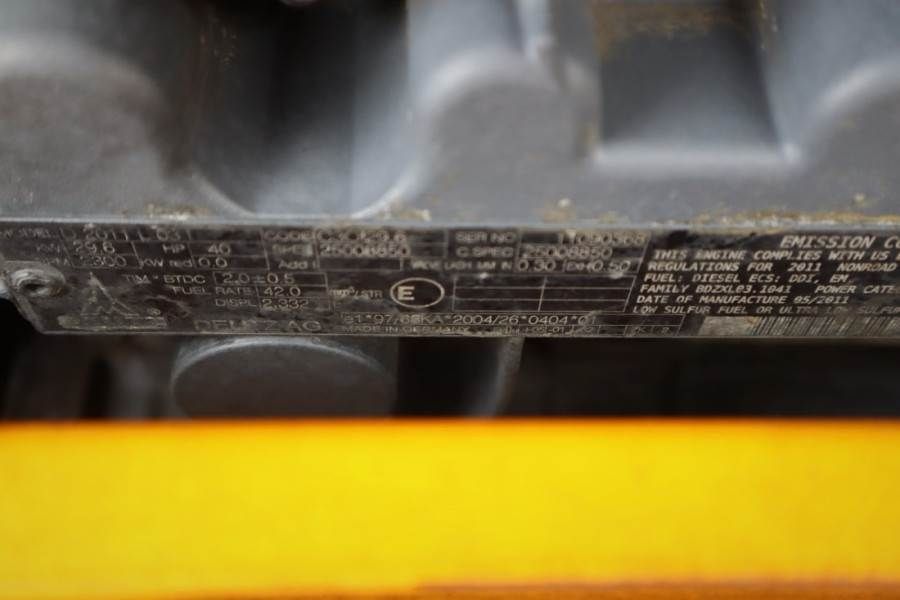

Deutz D 2011 L 03
Power kW - HP: 29,6 - 40

Driveable in: full height
Outer turning radius: 5.05 m
Inner turning radius: 1.00 m
Max. inclination: 3°
Gradeability: Ca. 40 %

Transport size LxWxH:
4.84 m x 2.39 m x 2.62 m
Weight: 11.300 kg

CE (Declaration of Conformity).

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
