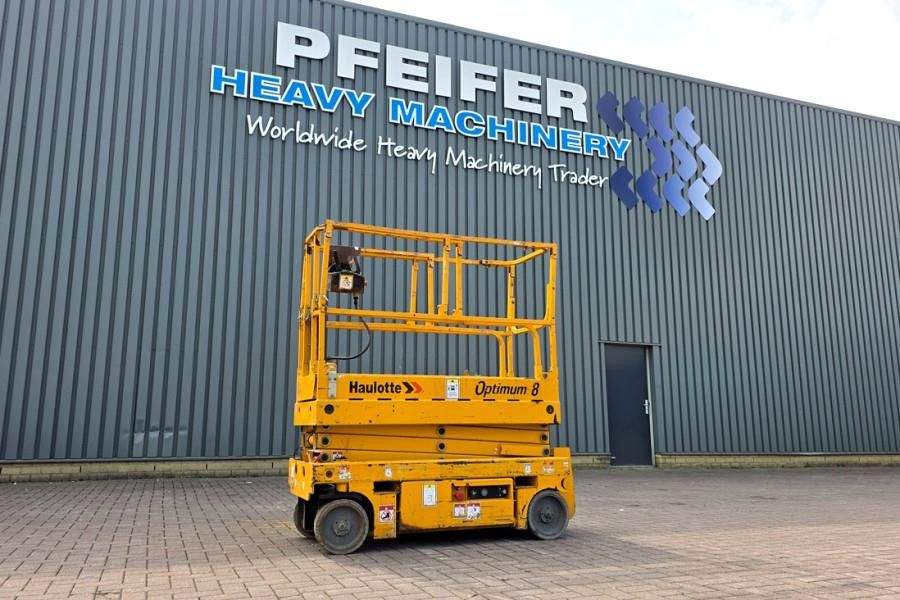

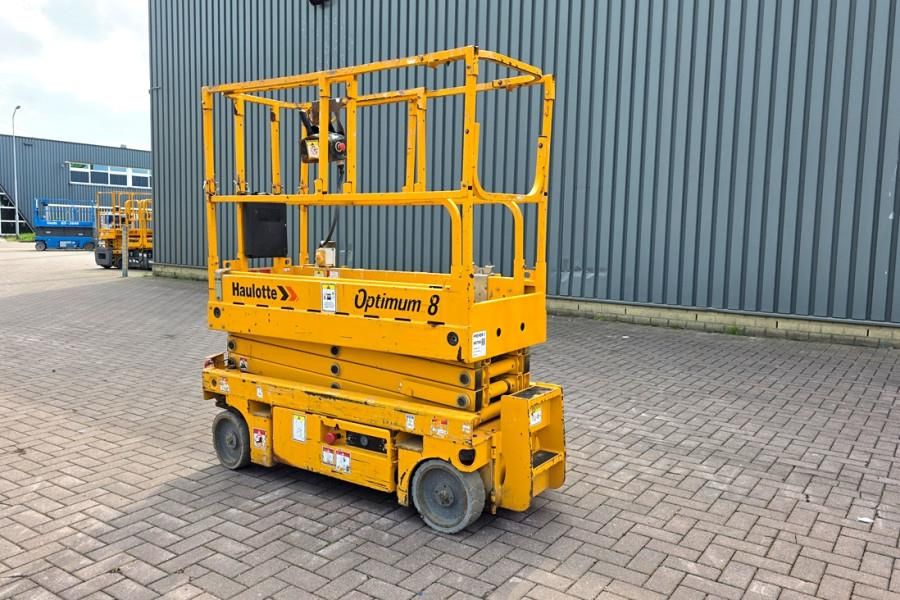

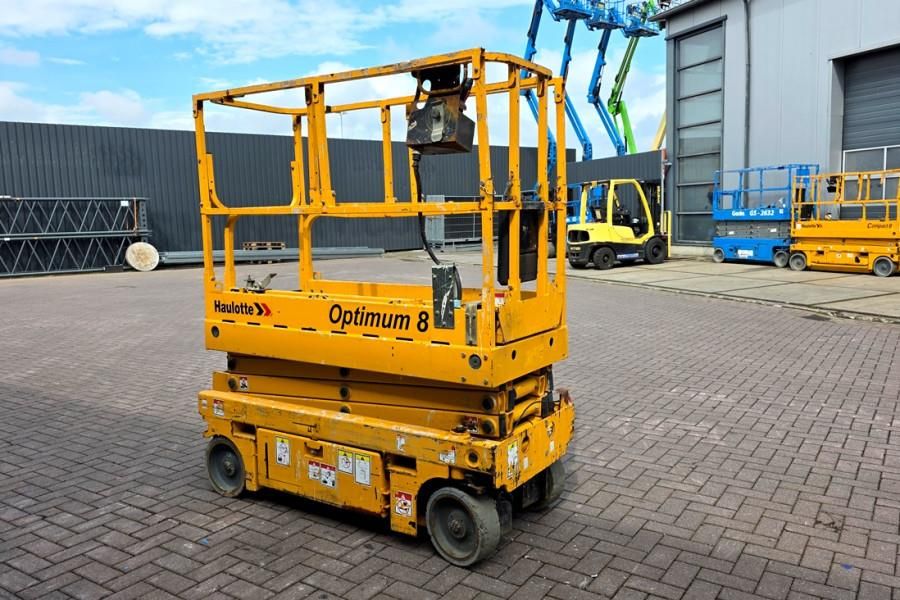

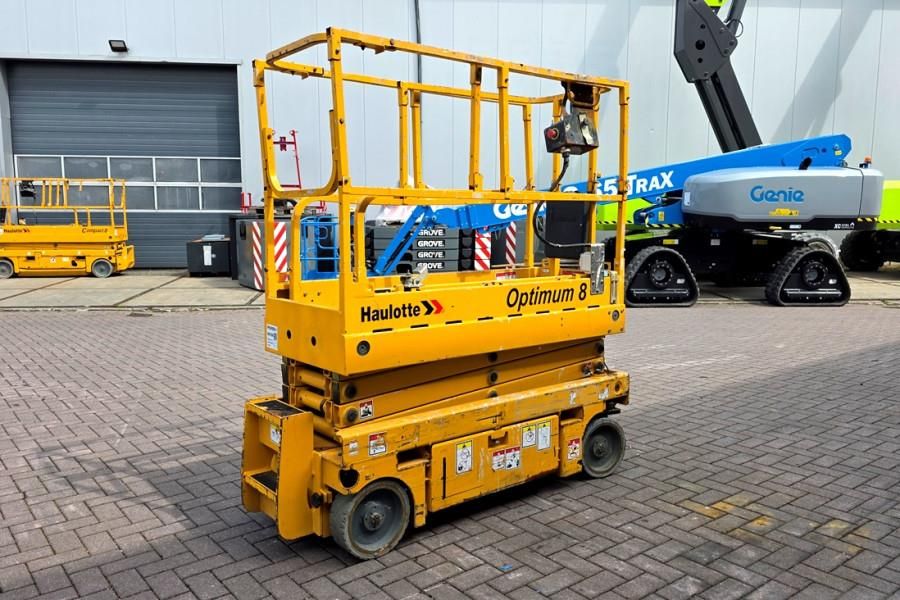

Haulotte Optimum 8 Electric, 7.77m Working Height, 230kg Ca

Omschrijving

Manufacturer: Haulotte
Typ: Optimum 8AC
Manuf. year: 2012

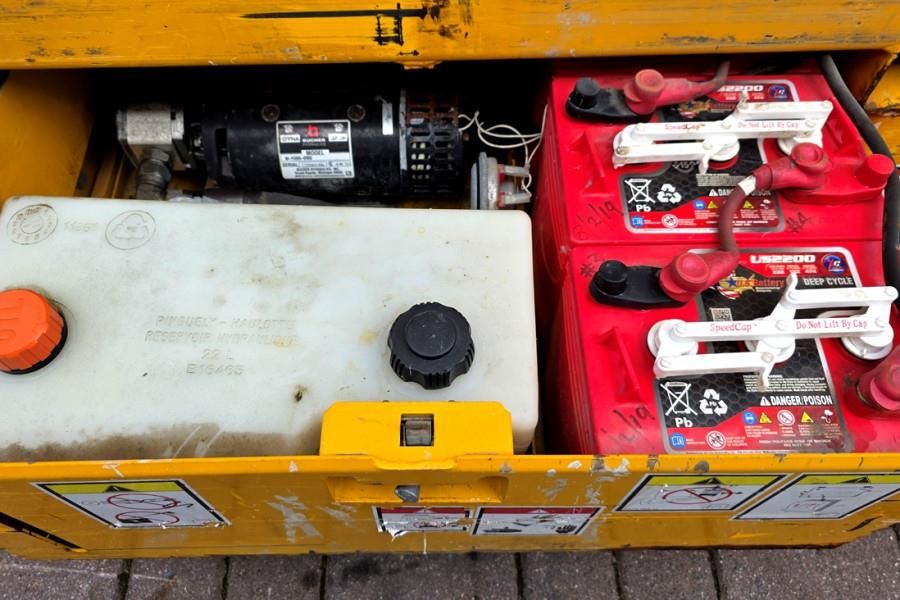

Fuel: Electric

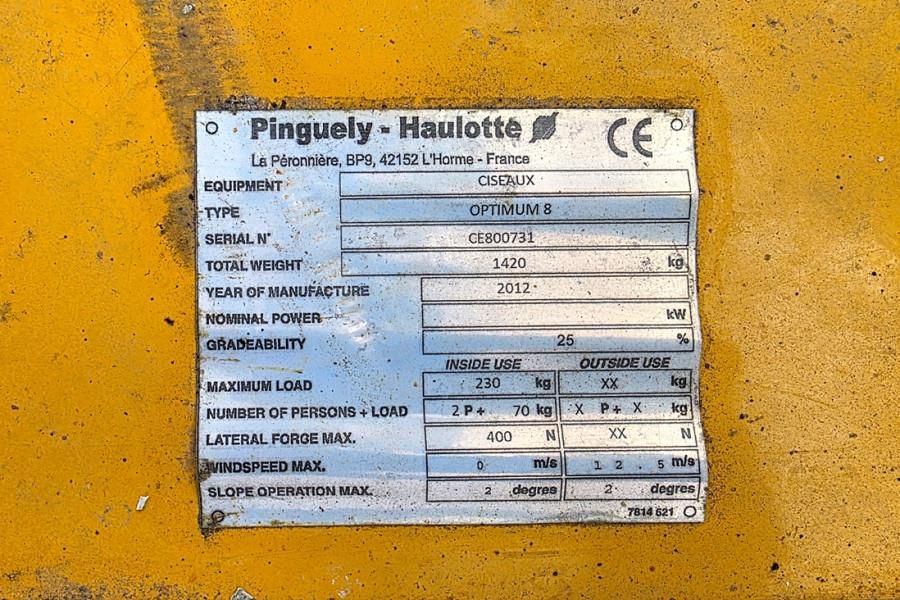

Serial number: CE800731

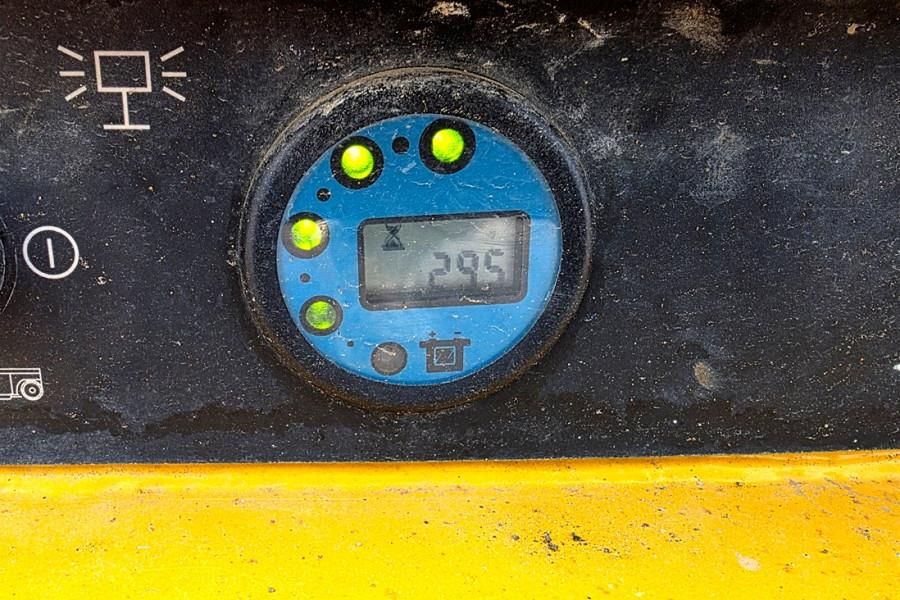

Working Hours: 295 h

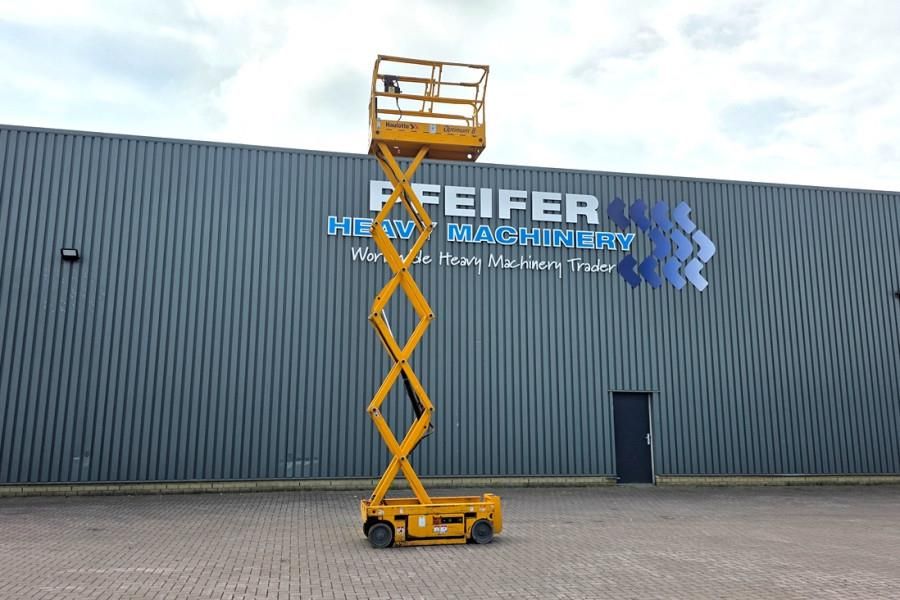

Working height: 7.77 m
Max. drive working height: 5.77 m
Lift capacity - inside: 230 kg (2 pers.)
Lift capacity - outside: 230 kg (1 pers.)
Lift capacity on the extension: 120 kg

Platform length: 1.72 m
Platform length - extended: 2.59 m
Length - extension: 0.86 m
Platform width - outside: 0.74 m
Platform size - extended: 2.59 x 0.74 m

Height - stowed: 1.98 m
Overall width: 0.79 m
Length: 1.9 m

Wheelbase: 1.38 m
Ground clearance - center: 8.7 cm
Ground clearance - deployed potholes: 2 cm

Drive speed: 0.5 - 5 km/h
Gradeability: 25 %
Tilt: 1.5° / 3°
Turning radius - outside: 1.5 m
Non-marking tyres: 12.5 x 4.13

CE (Declaration of Conformity)
