Haulotte HT23RTJ Pro Valid inspection, *Guarantee! 22.5 m W

Omschrijving

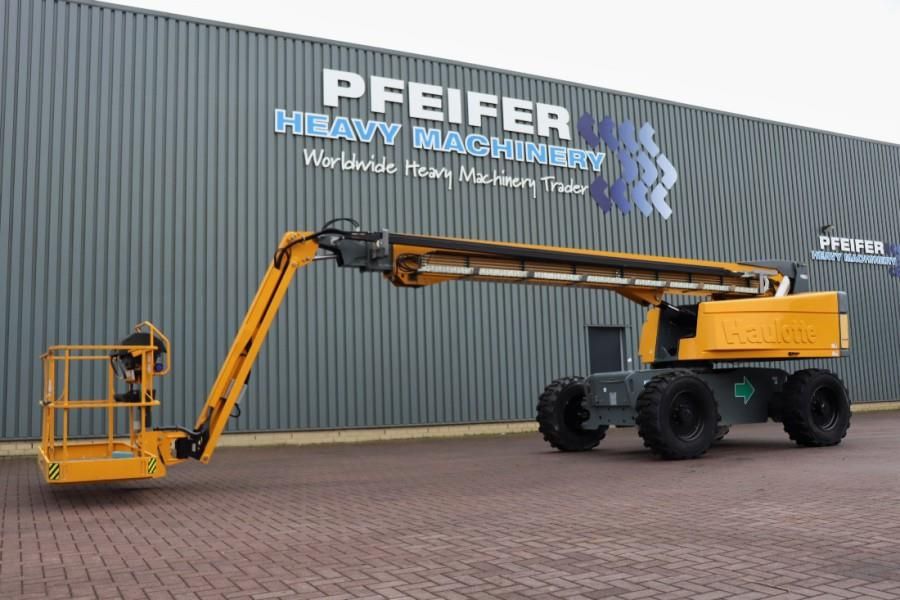

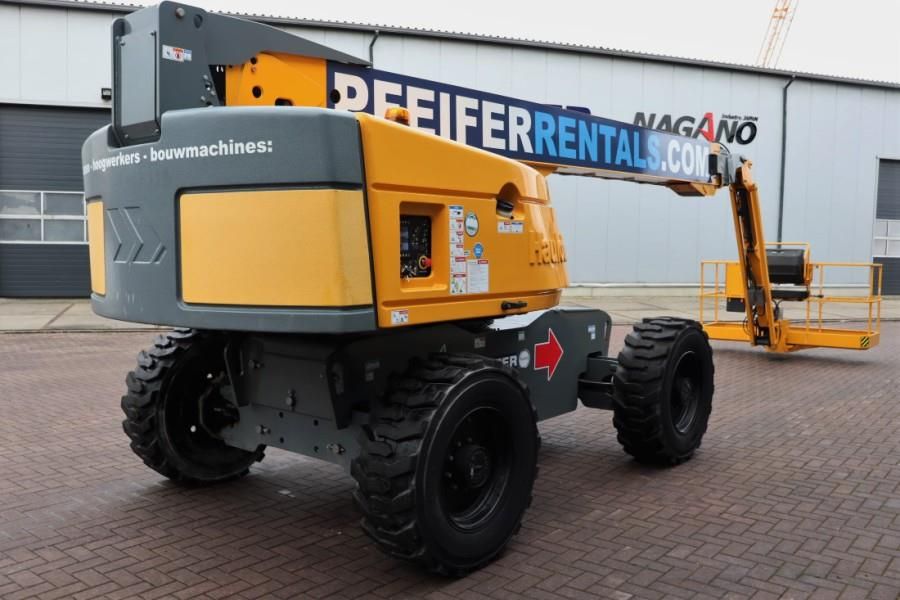

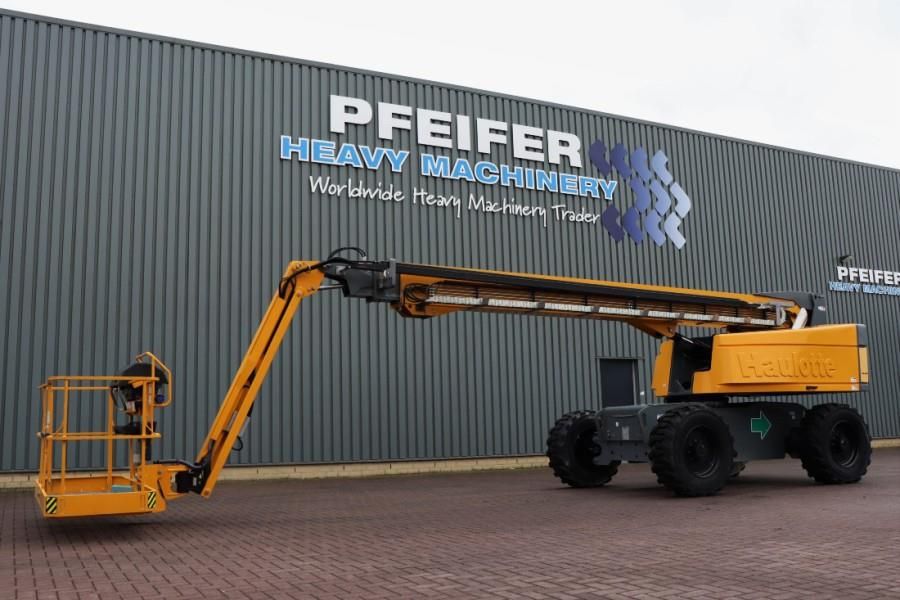

Self-Propelled Boomlift.
HAULOTTE HT23RTJ PRO YEAR 2018

This machine has a valid inspection and can be sold with warranty. Inform about our conditions!

Manufacturer: Haulotte
Typ: HT23RTJ PRO
Mnuf. year: 2018

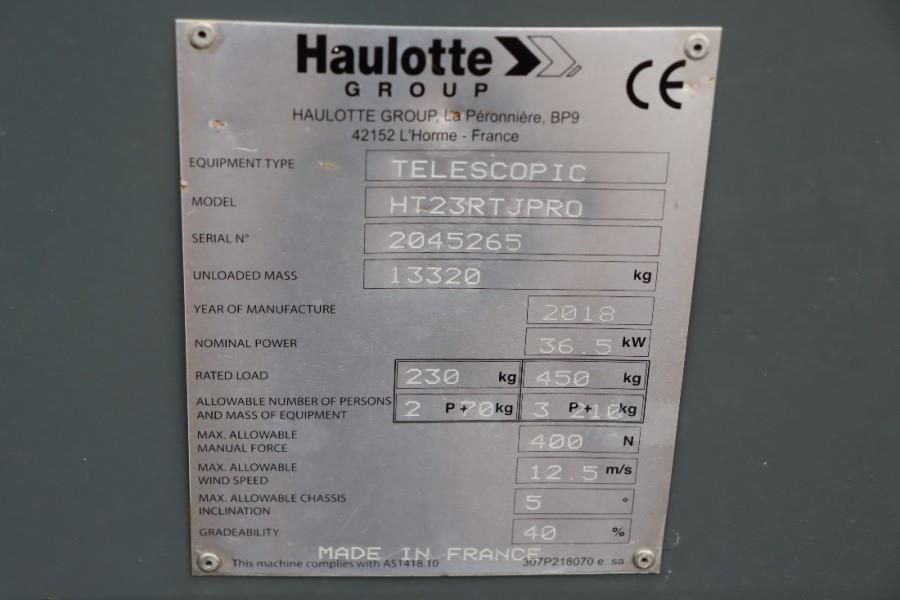

Serial number: 2045265

Fuel: Diesel
Engine: Kubota / TIER 4 interim
Engine Output: 36.5 kW - 48.9 hp

Working height: 22.5 m
Horizontal outreach: 18.3 m
Below ground reach: 4 m
Lift capacity: 450 kg
Vertical jib rotation: 133° (+68/-65)
Platform rotation: 180° (+90/-90)
Boom rotation angle: 90° (+75/-15)
Turntable rotatio: 360° continuous
Drive speed: 0.5 - 6.5 km/h
Gradeability:40 %

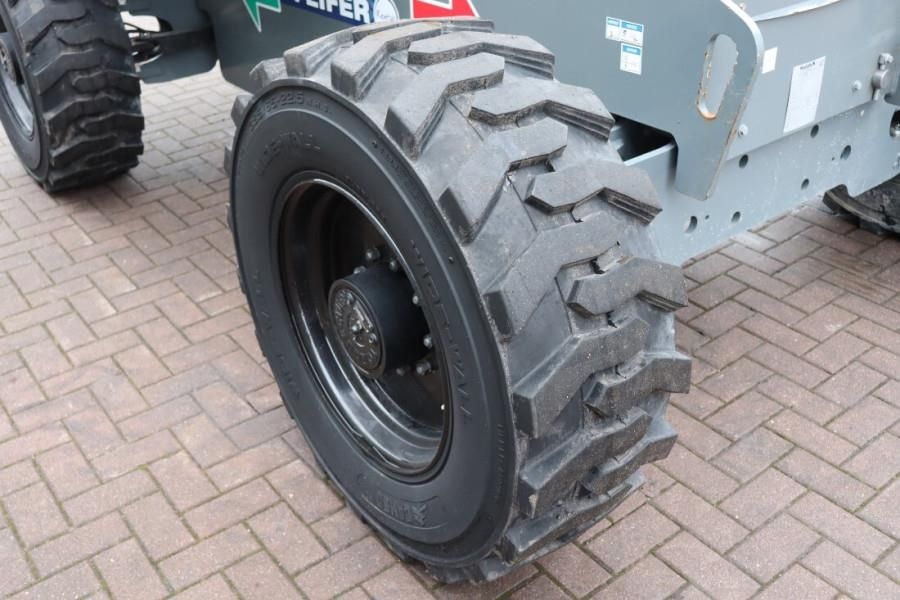

● 4 wheel drive 4 (PRO) wheel steer
● Automatic differential wheel lock increase rough terrain capacity
● Front oscillating axle increases stability on uneven ground

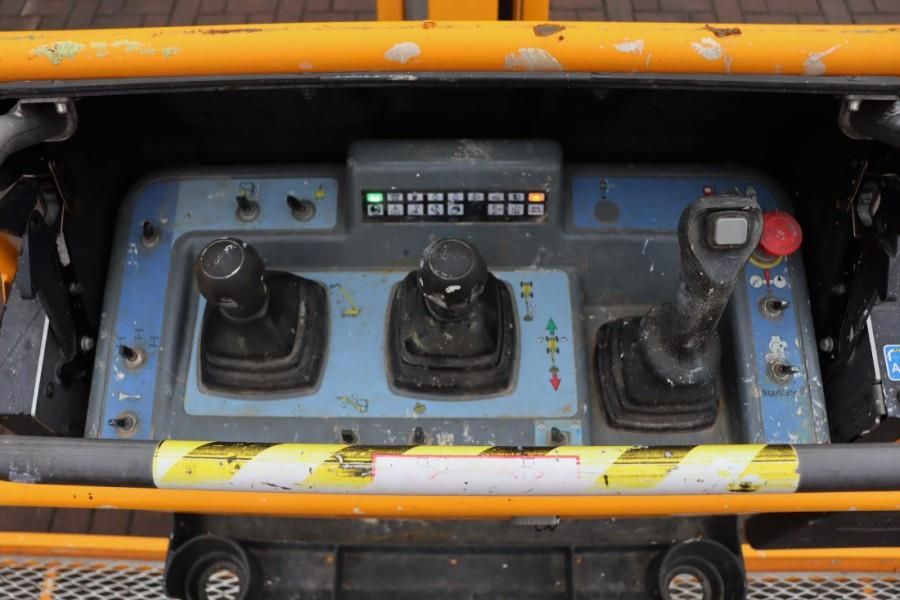

● Proportional controls enhance comfort and safety
● 4 simultaneous movements for maximum productivity
● 450 kg load capacity unrestricted working envelope

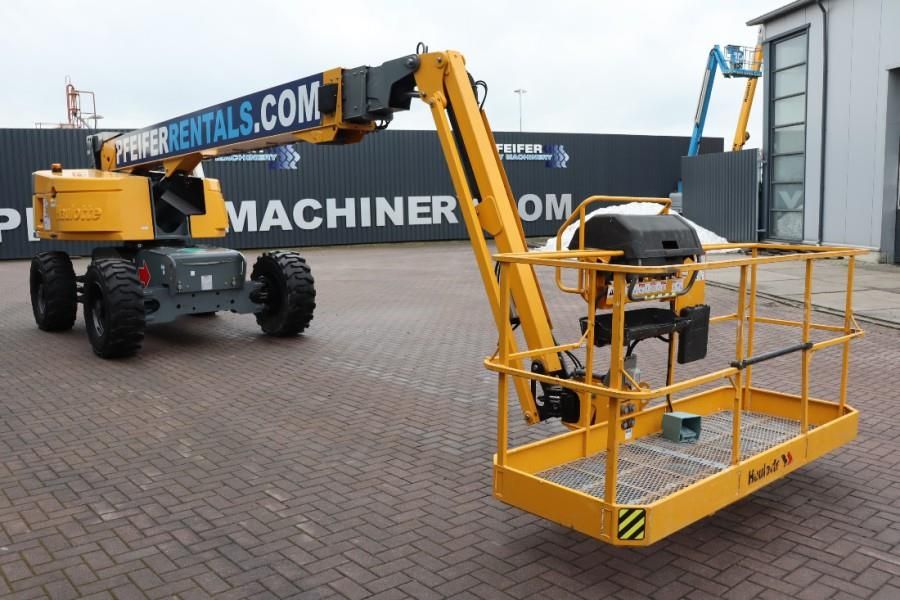

● Large modular basket 2.44 x 0.91 m, Drop entry gate
● Upper control box protection cover and tool tray
● Prepared for power to platform 110 / 230 V
● Basket limitation +/- 10°

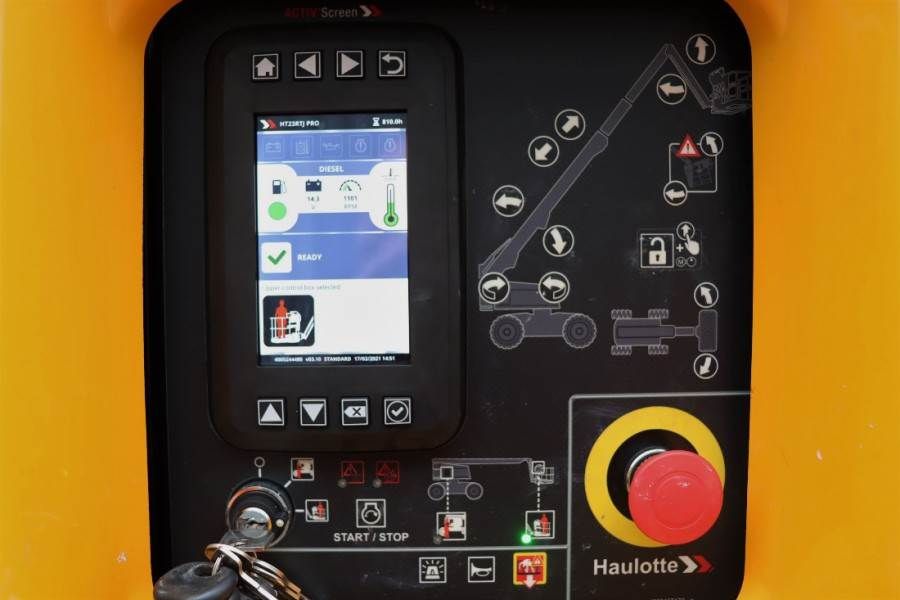

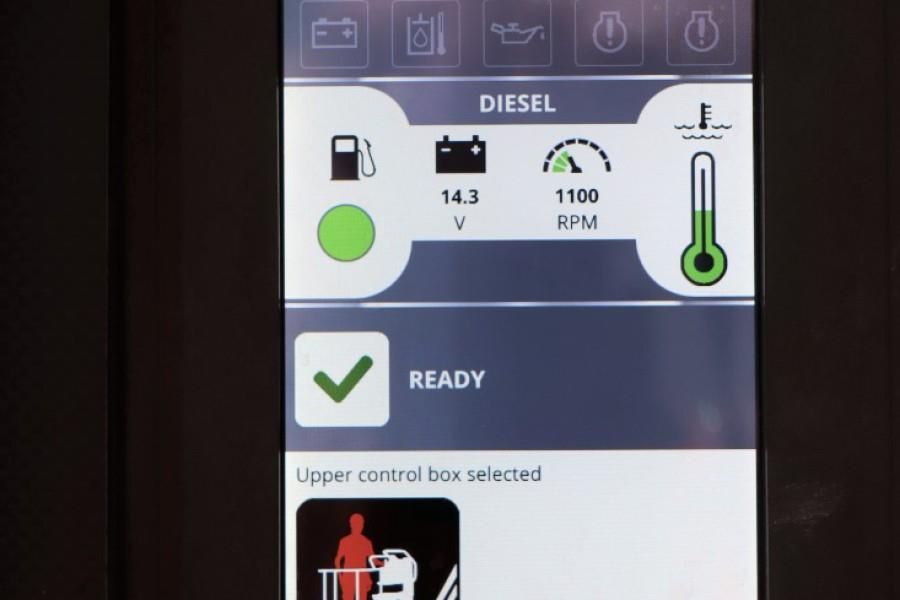

● ACTIV''Screen colored monitor screen and diagnostic system

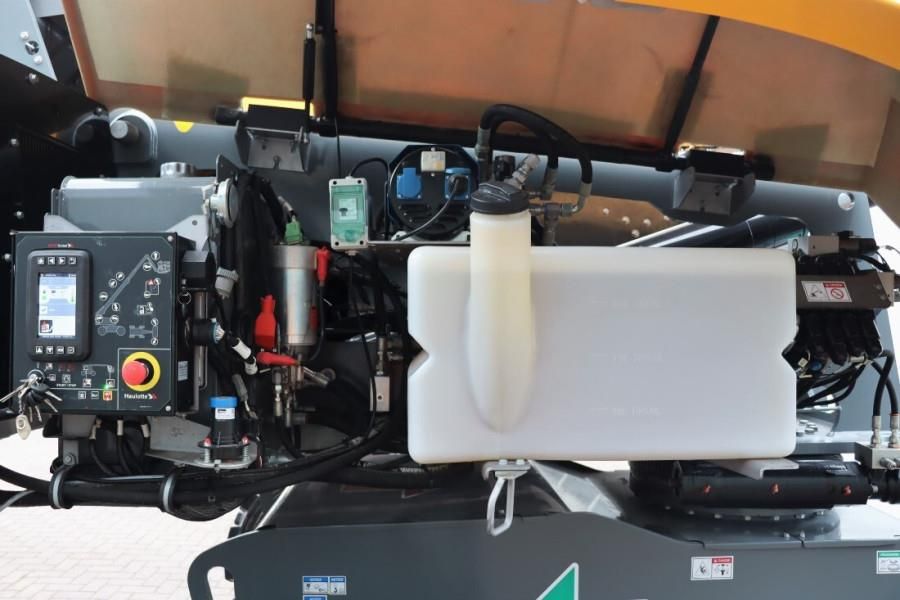

● Swing out engine tray for ease of maintenance
● Hour meter
● Low fuel level indicator (upper control box)
● Engine pre-heater with light indicator
● Sound and light alarm for tilt and load
● Maximum wind speed 45 km/h / 28 mph
● 12 V battery

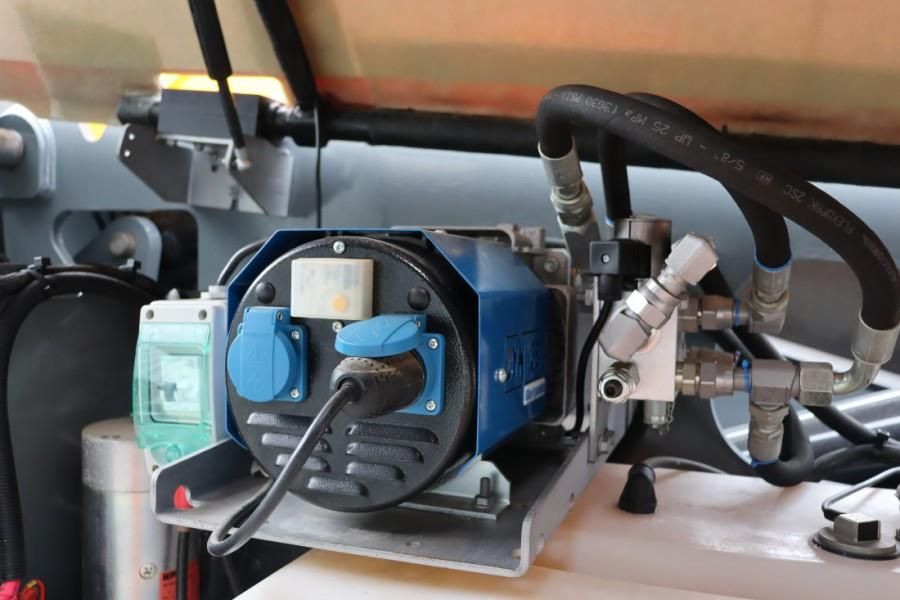

● Electric pump system and emergency descent
● Rotating beacon
● Driving alarm
● Haulotte Activ''Shield™ Bar PRO model

Transport size: LxWx:
7.80 m x 2.47 m x 3.30 m

CE (Declaration of Conformity)

More detailed pictures / product movie on our website.

pfeifermachinery.com

Above specifications are subject to change without prior notice and subject to errors.
