Genie Z135/70 Diesel, 4x4x4 Drive, 43m Lifting Height, 2
Kenmerken
Omschrijving
Manufacturer: Genie
Typ: Z-135/70
Building year: 2008
Fuel: Diesel
Serial number: Z13508-679

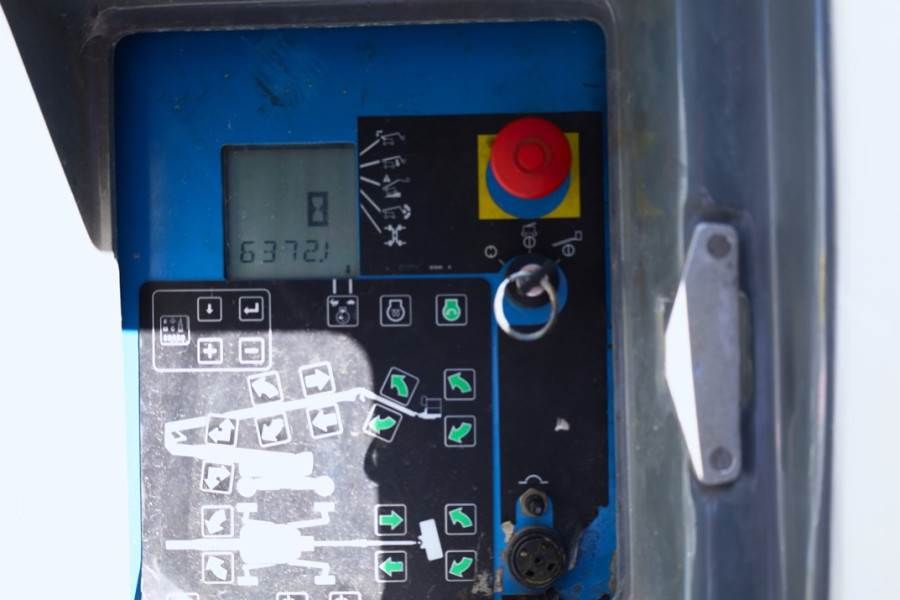

Working hours: 6.372 h
Measurements
Working height maximum: 43.15 m
Horizontal reach max - riser extended: 18.03 m
Horizontal reach max - riser retracted: 21.26 m
Up and over maximum riser extended: 23.01
Up and over maximum riser retracted: 9.91 m
Productivity
Lift capacity: 272 kg
Platform rotation: 160°
Vertical jib rotation: 110°
Turntable rotation: 360° continuous
Turntable tailswing - riser down: 4.29 m
Drive speed - stowed: 4.8 km/h
Drive speed - raised: 1.1 km/h
Gradeability - stowed: 45%
Tires: Outrigger 445/65 D 22.5 Foam-Filled
Tires condition: 2 x 60 - 2 x 40%
* CE (Declaration of Conformity)
More detailed pictures / product movie on our website.
pfeifermachinery.com
Above specifications are subject to change without prior notice and subject to errors.
